The HS-T60AM Electric Camera Test Platform is equipped with an electric lift system that enables convenient camera height adjustment during testing. It has a vertical range of 600mm, allowing easy positioning of the camera in conjunction with a laptop placed on the desktop.
There are two versions of the platform: HS-T60AM1 and HS-T60AM2. The AM1 version includes four ground pulleys on the two sides for easy movement. The AM2 platform, in addition to one-side pulleys, features a 2-meter single rail for forward and backward movement. If you need a customized rail length, please contact sales@rdbuy.com. The platform also has left and right sliding rails and is equipped with a Manfrotto tripod head for effortless testing angle adjustment.
▋ Key Features
The desktop is a 600X800X13mm black optical platform, ensuring flatness.
Electric lift system with dual motors for fast and stable height adjustment, delivering ultra-quiet operation.
Key-controlled lifting system with a vertical travel distance of 60cm for effortless adjustment.
Equipped with a camera micro-adjustment tripod head, enabling precise adjustments in all directions.
Combined with a three-axis rotating tripod head, allowing for 6-axis adjustments.
Optional single sliding rail with corresponding scale for easy forward and backward movement.
▋ Specification
| Product name | HS-T60AM1/AM2 |
| Desktop Size | 600×800mm |
| Vertical Stroke | fine-tuning:60mm ; Coarse-tuning:600mm |
| Left - Right Stroke | fine-tuning:400mm |
| Front - Rear Stroke | fine-tuning:150mm |
| Manfrotto Gimbal | Lateral tilt:-90°/+30° Panoramic rotation:360° Pitch forward and backward：-30°/+90° |
| Material | Carbon Steel/Aluminum Alloy |
| Loading Capacity | 20kg |
| Power Supply | 220V/3A |
| Drive Mode | Electric |

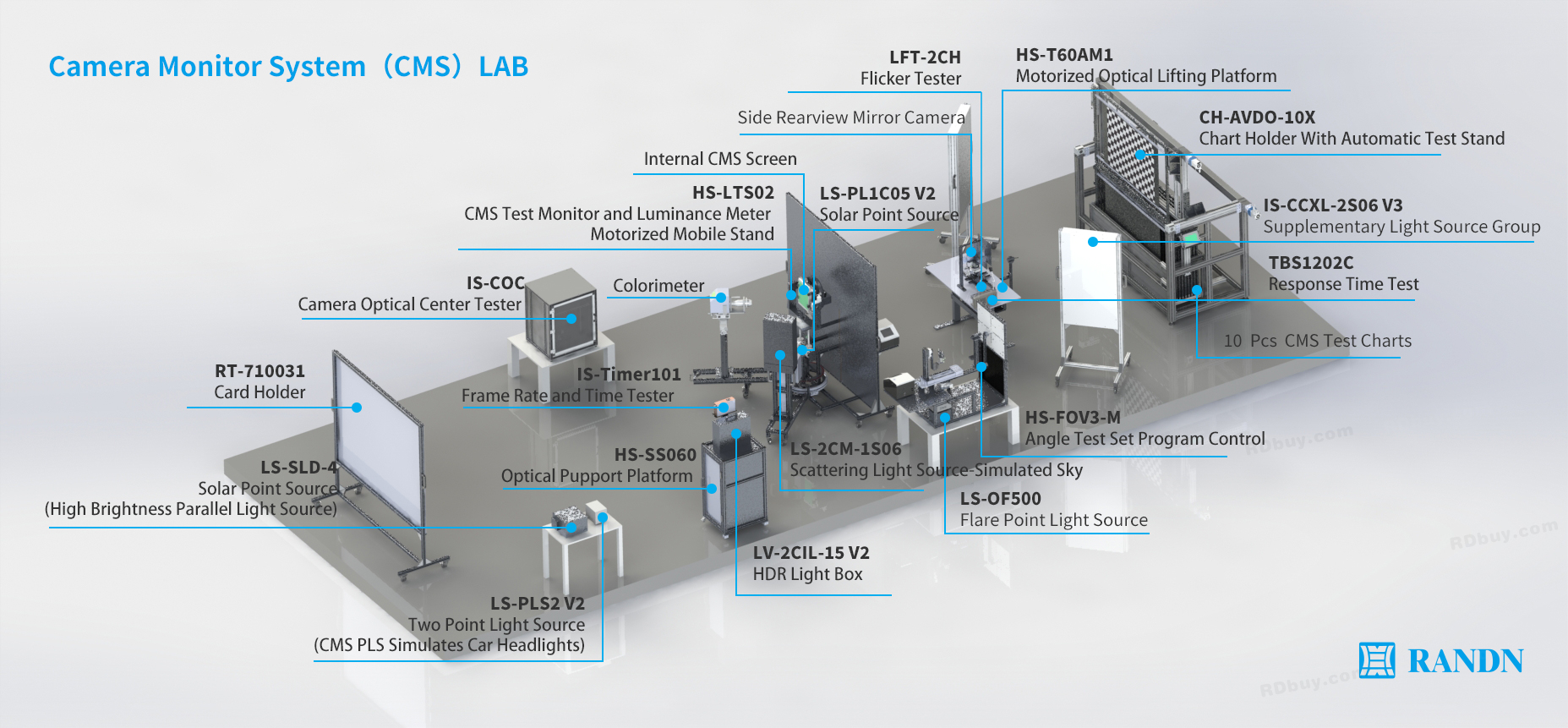

CMS LAB Model ↓
——————————————————————————————————————————————————————————
