MIG-S2 / MIG-S2 Pro is a MIPI interface frame grabber for automotive camera module systems of small size, high compatibility and high reliability. Simple in design and convenient in use, it supports most image acquisition of most camera modules on the market, and it has the advantage of strong scalability and provides a stable test environment. This product can be used for autonomous driving algorithm develop ment  and camera image quality testing in production lines.

▌HIGHTLIGHTS

• FPGA based MIPI interface;

• FX3 USB 3.0 controller;

• Supports GMSL, FPD-Link and other SerDes interfaces;

• MAX9296A deserializer board included. FPD-Link III selectable;

▌APPLICATIONS

Research and pre-development in the algorithm development using State-of-the-art automotive cameras like AI and self-driving. Camera Image Quality Testing Camera Focus Adjustment on Production Sites.

• INTERFACE

For Windows10 or Higher I2C camera control and link configuration Sensor power sequencing

  For Windows10 or Higher

  I2C camera control and link configuration

  Sensor power sequencing

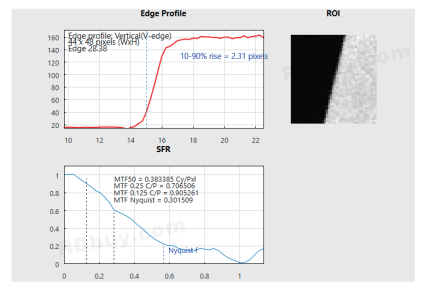

• Analyzing MTF

SFR - IS0 12233:2022+ compliance

Tukey window

5-Order polynomial fitting

Noise reduction

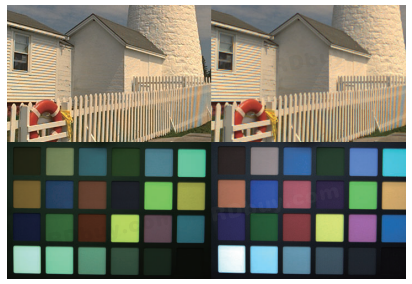

• Color Processing

Various de-mosaicing algorithm

Color correction, AWB

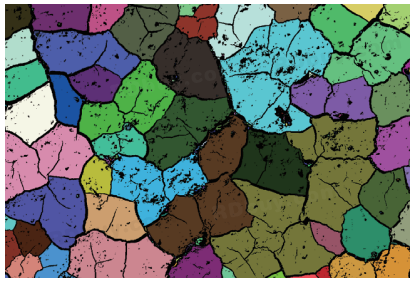

• Image Processing and Analysis

Blob analyzer / Pattern recognition

Various image processing and defect detection algorithm

Intrinsic/Extrinsic Camera Calibration

• Development Environment

C/C++, Python SDK

▌SPECIFICATION

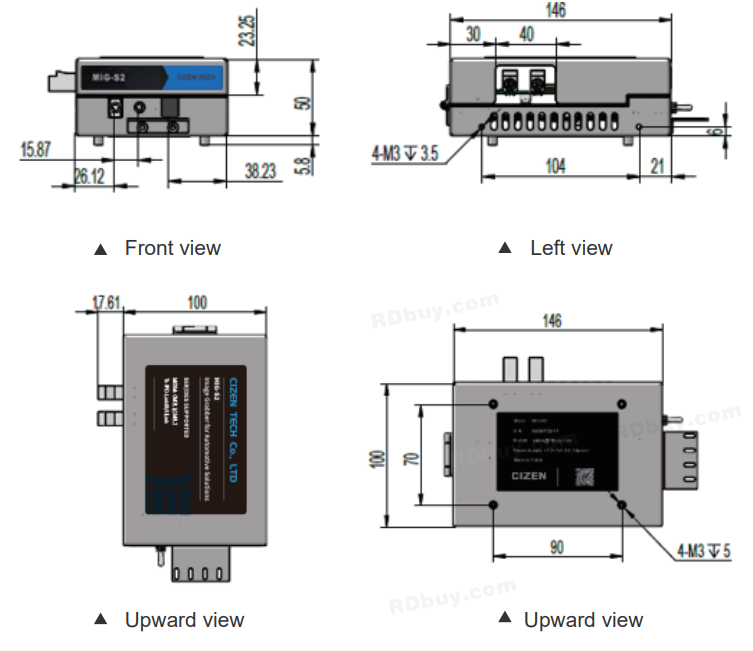

▌DIMENSION

(Product video: https://youtu.be/-wDMSKMzK8M)

Related Camera Module Introduction
