HUD Optical Characteristics Automated Testing System RT-HUD V3

Model: RT-HUD V3

High-Fidelity scenario simulation?Omnidirectional Adjustment capability

Product Details

This HUD testing system integrates hardware, precision instruments, and self-developed analysis software to provide a comprehensive testing solution for automotive Head-Up Display (HUD) products. The hardware features an adiustable test platform with 25°-70° automatic windshield rotation to simulate various vehicle glasstilt angles, along with a three-axis optical machine adjustment system for precise positioning (vertical, horizontal, depth, and pitch). Compatible instruments include high-precision binocular cameras and Konica Minolta imaging luminance meters. The self-developed RIQA analysis software enables automated multi-item testing professional reporting, data visualization, and comparative analysis. The system evaluates critical HUD imaging metrics such as ghosting, distortion, brightness uniformity, and virtual image position/size. lt is suitable for HUD R&D labs, production quality control, third-party certification, and automotive OEMs. Compliant with ISO 9001 standards, the system includes a 12-month warranty and lifetime technical support lfree installation, training maintenance,and software upgrades)



Features

.High-Fidelity scenario simulation

Windshield supports 25°-70° automatic rotation to replicate real-world vehicle glass angles accurately




omnidirectionalAdjustment capability

Three-axis optical adjustment (vertical, horizontal, depth) with pitch controladapts to diverse HUD testing requirements.






compatibility with High-Precision instruments

Supports integration of binocular cameras, Konica Minolta luminance meters, and other professional devices for reliable data acquisition.




Intelligent Analysis software

RlOA software automates multi-parameter testing, gener-ates professional reports, and visualizes data to enhance efficiency.






Comprehensive Imaging Quality Assessment

Evaluates ghosting, distortion, brightness uniformity, virtual image position/size,and other key optical performance indicators.



Modular Design

Modular hardware and software architecture ensures scalability and future-proof upgrades to meet evolving technologies and client needs.



Testing ltems

Geometric Measurement ltems

◆ Downward Viewing Angle (LDA)

◆ Virtual lmage Distance (VlD)

◆ Eye Box Size

◆ Leftward Viewing Angle (LOA)

◆ Field of view (FOV)

◆ Binocular Disparity








Applications

The RT-HUD V3 system delivers efficient and precise testing for automotive HUDs. Integrated with high-precision hardware and inteligent software, it automates evaluations of ghosting, distortion, brightness unifomity, and virtual image characteristics. Compatible with multiple instruments, it rapidly generates professional reports. ldeal for HUD R&D, production, and third-party certification, ensuring peformance optimization and quality assurance.

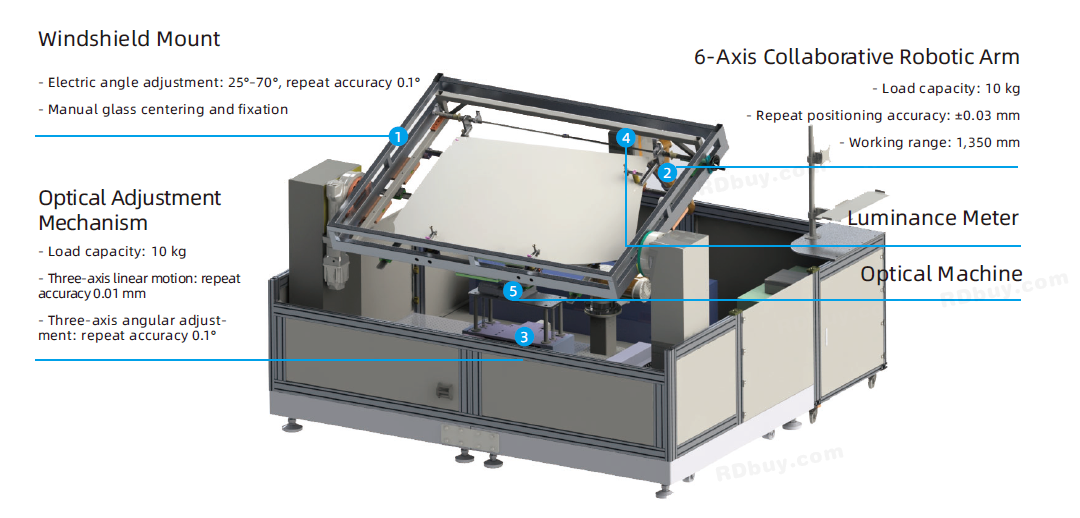

Hardware Components









Software Components



【Features】

1.Automated Control: Supports one-touch start, enabling the device to automatically execute all test items based on preset parameters.

2.Motion Control: Achieves precise positioning and movement of the measurement equipment.

3.Real-Time Attitude Display: Provides real-time digital attitude monitoring, allowing users to track angular changes instantly.

4.Fine Adiustment Support: Allows users to make minimal-range adjustments to optimize device positioning and ensure accuracy.

5.0ne-Touch Homing Function: With a single click, the device automatically returns to its preset zero position.

6.Work Position Memory: Stores multiple work positions and enables one-touch relocation to any predefined target position.








Physical Dimensions




Specification



Model
General Dimensions 2,800 mmx2,600 mm x2,500 mm(LxWxH)
Weight Approx.2,000 kg
Storage Temperature 10-30°C
Operating Temperature 23-27°c(recommended),18-28 °c(acceptable)
Power input 110-240 V~12.0 A, 50/60 Hz
Rated Power 6,200 W

HUD Optical Machine

Max. Load Capacity 10 kg
X-axis Travel ±250 mm
Y-axis Travel ±750 mm
Z-axis Travel ±80 mm
Pitch Rotation Range ±5°
Yaw Rotation Range ±5°
Roll Rotation Range ±5°
Rotationspeed 1-5°/s
Windshield Glass Size width:1,100-1,500 mm,Height: 700-1,500 mm
Glass Angle Adjustment 20°-70°
Robotic Arm Load Capacity 10 kg
Working Range 1.350 mm

Control &Interfaces

Control Method Computer-programmed
Interfaces USB 2.0 Type-B /CAN / Ethemet
Software HUD Testing system(windows 10/11 compatible)
API Provided (supports c++14/C++11, Microsoft Visual studio 2022 (v143))
Others Package Contents

IndustrialPC x1,Power Cables x1 (1.5 m international / 3 m Us standard),Specification Manualx1,

User Manual x1,Test Report x1, Display x1,Keyboard & Mouse x1, Electrical cabinetx1,Ro botic Amm x1

Robotic Am Power Box x1,Teach Pendant x1,Tri-color Lamp x1, Adjustable Power Supply x1
