Neutral Density Filters (ND)

Neutral Density Filters (ND Filters) are widely used in imaging and laser systems to effectively reduce light intensity and prevent damage from strong light to camera sensors, photometers, or other precision optical components, ensuring measurement accuracy and equipment safety. By absorbing or reflecting part of the light, these filters achieve uniform attenuation across selected spectral bands, enabling precise control of light intensity. They maintain stable transmittance across the 400–700nm visible spectrum without wavelength-dependent variation, ensuring consistent color reproduction, making them ideal for applications with strict optical precision and color requirements.

Quick Specifications
  • Standard Size: 50x50mm optical glass
  • Spectral Range: 400–700nm
  • Transmittance: 0.3%~80% (multiple levels available)
  • Optical Density: 0.1–2.5
  • Surface Accuracy: <1per inch

Product Details

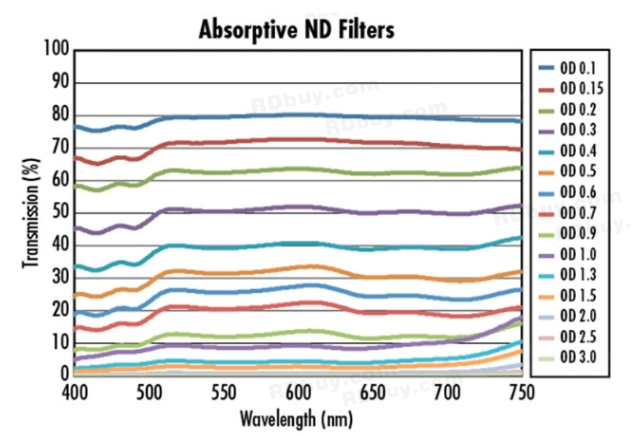

Yanding Neutral Density Filters exhibit consistent spectral transmittance characteristics across the visible spectrum, regardless of wavelength. This makes them an optimal choice for precise exposure control in color photography, as well as for managing light in various measuring instruments.

Available in a standard size of 50x50mm square, these filters can be acquired individually or as a comprehensive set. The following 14 standard options are offered, each with a unique level of light transmission: ND0.3, ND1, ND3, ND5, ND10, ND13, ND20, ND25, ND30, ND40, ND50, ND60, ND70, ND80, corresponding to transmission rates of 0.3%, 1%, 3%, 5%, 10%, 12.5%, 20%, 25%, 30%, 40%, 50%, 60%, 70%, and 80%, respectively.



ModelTransmittance%Optical Density (OD)Wavelength RangeSize/Tolerance(mm)Thickness(mm)Surface Accuracy
ND0.30.3±0.052.5±0.1400-700nm50x50/±0.22.85<1per inch
ND11±0.52±0.3400-700nm50x50/±0.22.22<1per inch
ND33±0.51.5±0.1400-700nm50x50/±0.21.65<1per inch
ND55±11.3±0.1400-700nm50x50/±0.21.41<1per inch
ND1010±21±0.1400-700nm50x50/±0.22.75<1per inch
ND1312.5±20.90±0.1400-700nm50x50/±0.22.42<1per inch
ND2020±20.70±0.05400-700nm50x50/±0.23.06<1per inch
ND2525±2.50.60±0.05400-700nm50x50/±0.22.61<1per inch
ND3030±30.52±0.05400-700nm50x50/±0.22.24<1per inch
ND4040±40.40±0.05400-700nm50x50/±0.22.73<1per inch
ND5050±50.30±0.05400-700nm50x50/±0.22.5<1per inch
ND6060±50.22±0.04400-700nm50x50/±0.21.75<1per inch
ND7070±50.15±0.04400-700nm50x50/±0.22.9<1per inch
ND8080±50.1±0.03400-700nm50x50/±0.21.5<1per inch
